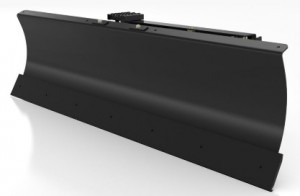

Caterpillar Angle Blades are useful work tools in a wide range of applications for moving dirt, gravel, livestock waste and snow. They are also useful for finish grade work in construction and landscaping.
- Bolt-on, curved mouldboard with standard reversible/ replaceable bolt-on. Hardened DH-2 steel cutting edge delivers long life and high performance.
- Blades are interchangeable due to a common back interface structure.
- Two-way blade allows blade to be operated with the blade locked for aggressive dozing or with spring-loaded trip engaged for pushing snow of livestock waste.
- Spherical rod eye cylinder adds another degree of freedom to the jointed section for better impact protection.
- Optional snow kit with heavy – duty guard assembley, two edge markers and mounting hardware. Optional bolt-on non metallic edges reduce surface scratches on marring of concrete and asphalt surfaces.
- Four preloaded springs provide appropriate force with the spring – loaded trip engaged. Springs can be removed individually to accommodate a lighter trip.
Caterpillar 1829mm(72in) Angle Blade
- Overall Width – 1829mm
- Working Width – 1685mm
- Maximum Blade Angle – 30 degrees
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 246C (XPS) Skid Steer Loader
- 256C (XPS) Skid Steer Loader
- 262C (XPS) Skid Steer Loader
- 272C (XPS) Skid Steer Loader
- 277C (XPS) Multi Terrain Loader
- 287C (XPS) Multi Terrain Loader
- 297C (XPS) Multi Terrain Loader
- 279C Compact Track Loader
- 289C Compact Track Loader
- 299C Compact Track Loader
- 247B Series 3 Multi Terrain Loader
- 216B Series 3 Skid Steer Loader
- 226B Series 3 Skid Steer Loader
- 236B Series 3 Skid Steer Loader
- 242B Series 3 Skid Steer Loader
- 257B Series 3 Multi Terrain Loader
- 259B Series 3 Compact Track Loader
Caterpillar 2134mm(84in) Angle Blade
- Overall Width – 2134mm
- Working Width – 1685mm
- Maximum Blade Angle – 30 degrees
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 246C (XPS) Skid Steer Loader
- 256C (XPS) Skid Steer Loader
- 262C (XPS) Skid Steer Loader
- 272C (XPS) Skid Steer Loader
- 277C (XPS) Multi Terrain Loader
- 287C (XPS) Multi Terrain Loader
- 297C (XPS) Multi Terrain Loader
- 279C Compact Track Loader
- 289C Compact Track Loader
- 299C Compact Track Loader
- 247B Series 3 Multi Terrain Loader
- 216B Series 3 Skid Steer Loader
- 226B Series 3 Skid Steer Loader
- 236B Series 3 Skid Steer Loader
- 242B Series 3 Skid Steer Loader
- 257B Series 3 Multi Terrain Loader
- 259B Series 3 Compact Track Loader
