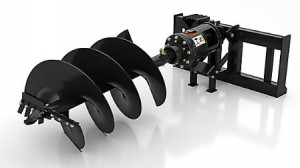

Caterpillar Augers are used for drilling holes for footings, fencing signs, trees and shrubs in construction, agricultural, and landscaping applications. They are designed with the right amount of speed and torque for maximum productivity in a broad range of soil types.
Caterpillar A7B Auger
Direct – drive design and hex- shaped output shaft. Compact cylindrical housing design is enclosed to minimize contaminants entering the drive housing when operating.
- Drive Shaft Torque @ Maximum Pressure – 1105Nm
- Drive Method – Gerotor Motor – Direct
- Mounting Bracket Design – Mini Hydraulic Excavator
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 302.5C Hydraulic Excavator
- 301.6C Hydraulic Excavator
- 301.8C Hydraulic Excavator
Caterpillar A14 B Auger
The A14B direct drive system features a variable speed, bidirectional, gerotor style hydraulic motor coupled to a sprocket/ chain reduction system for optimal bit speed and output torque for light to moderate duty applications.
- Drive Shaft Torque @ Maximum Pressure – 2304Nm
- Drive method – Gerotor Motor – Direct Drive
- Mounting bracket design – Skid Steer, Mutli Terrain, Compact Track and Compact Wheel Loader
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 906H Compact Wheel Loader
- 907H Compact Wheel Loader
- 908H Compact Wheel Loader
- 246C (XPS) Skid Steer Loader
- 256C (XPS) Skid Steer Loader
- 262C (XPS) Skid Steer Loader
- 272C (XPS) Skid Steer Loader
- 277C (XPS) Multi Terrain Loader
- 287C (XPS) Multi Terrain Loader
- 297C (XPS) Multi Terrain Loader
- 279C Compact Track Loader
- 289C Compact Track Loader
- 299C Compact Track Loader
- 247B Series 3 Multi Terrain Loader
- 216B Series 3 Skid Steer Loader
- 226B Series 3 Skid Steer Loader
- 236B Series 3 Skid Steer Loader
- 242B Series 3 Skid Steer Loader
- 257B Series 3 Multi Terrain Loader
Caterpillar A14B Auger
- Drive Shaft torque @ Maximum Pressure -2304Nm
- Drive method Gerotor Motor- Direct Drive
- Mounting bracket design – Mini Hydraulic Excavator
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 302.5C Hydraulic Excavator
- 303.5D CR Mini Hydraulic Excavator
Caterpillar A19B Auger
The A19 single reduction planetary system features a variable speed, bidirectional, gerotor style hydraulic motor mounted to an in-line planetary gear box for optimal bit speed and output torque for moderate to heavy duty applications. The additional output torque provides better performance with larger diameter bits.
- Drive Shaft Torque @ Maximum Pressure – 4122Nm
- Drive method – Gerotor Motor – Single Planetary Reduction
- Mounting bracket design Skid Steer, Multi Terrain, Compact Truck and Compact Wheel Loader
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 906H Compact Wheel Loader
- 907H Compact Wheel Loader
- 908H Compact Wheel Loader
- 246C (XPS) Skid Steer Loader
- 256C (XPS) Skid Steer Loader
- 262C (XPS) Skid Steer Loader
- 272C (XPS) Skid Steer Loader
- 277C (XPS) Multi Terrain Loader
- 287C (XPS) Multi Terrain Loader
- 297C (XPS) Multi Terrain Loader
- 279C Compact Track Loader
- 289C Compact Track Loader
- 299C Compact Track Loader
- 247B Series 3 Multi Terrain Loader
- 216B Series 3 Skid Steer Loader
- 226B Series 3 Skid Steer Loader
- 236B Series 3 Skid Steer Loader
- 242B Series 3 Skid Steer Loader
- 257B Series 3 Multi Terrain Loader
Caterpillar A26B Auger
The A26B double reduction planetary system features a variable speed, bidirectional, gear hydraulic motor mounted to a planetary gear box for optimal bit speed and torque for extreme duty, high performance drilling requirements. Its exceptional output torque capabilities provides excellent performance in the toughest conditions with the largest diameter bits.
- Drive Shaft Torque @ Maximum Pressure – 5711Nm
- Drive method Gear Motor – Double Planetary Reduction
- Mounting bracket design Backhoe Loader
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 428E Backhoe Loader
- 432E Backhoe Loader
- 434E Pilot Backhoe Loader
- 444E Backhoe Loader
- 442E Backhoe Loader
- Drive Shaft Torque @ Maximum Pressure – 6826Nm
- Drive method Gear Motor – Double Planetary Reduction
- Mounting bracket design Skid Steer, Multi Terrain, Compact Track and Compact Wheel Loader
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 906H Compact Wheel Loader
- 907H Compact Wheel Loader
- 908H Compact Wheel Loader
- 246C (XPS) Skid Steer Loader
- 256C (XPS) Skid Steer Loader
- 262C (XPS) Skid Steer Loader
- 272C (XPS) Skid Steer Loader
- 277C (XPS) Multi Terrain Loader
- 287C (XPS) Multi Terrain Loader
- 297C (XPS) Multi Terrain Loader
- 279C Compact Track Loader
- 289C Compact Track Loader
- 299C Compact Track Loader
- 226B Series 3 Skid Steer Loader
- Drive Shaft Torque @ Maximum Pressure – 6830Nm
- Drive method Gerotor Motor – Double Planetary Reduction
- Mounting bracket design Mini Hydraulic Excavator
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 308D CR Mini Hydraulic Excavator with Fixed Boom
- 308D CR Mini Hydraulic Excavator with Swing Boom
- 307D Hydraulic Excavator
- 305.5D CR Mini Hydraulic Excavator
- 305D CR Mini Hydraulic Excavator
- 304D CR Mini Hydraulic Excavator
- 303.5D CR Mini Hydraulic Excavator
