Hydraulic and Manual Angle Brooms for backhoes, intergrated tool carriers and wheel loaders are ideal for clearing parking lots, industrial plants, millyards, airport runways, streets, driveways and lanes.

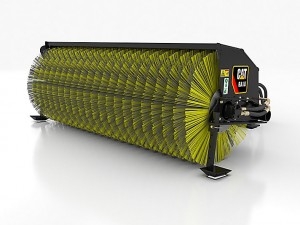

Caterpillar BA18[241-8235] Angle Broom
- Sweeping Width Straight – 2134mm
- Sweeping Width Angled – 1702mm
- Sweeping Angle – 30 degrees
- Unique Suspension – Unique suspension system eliminates the need for support wheels. The brush element maintains constant ground pressure through a range of vertical motion (+/-8”) from the initial setting.
- Variable Angle – Angles hydraulically or manually 30 degrees to either side; will also clean in straight position.
- Long Life Bearings – Broom bearings are low- maintenance.
- Parking Supports – Parking supports provide stable and secure parking of the unit.
- Optional Dust Control – Water sprinkling system is available as an option for effective dust control.
- Single Motor Broom – The BA22 broom is powered by one hydraulic motor.
- Dual Motor Broom – The BA25 & BA30 brooms are powered by two hydraulic motors.
- Manual Option – BA25 broom has manual angling option.
- Diverter Valve – BA22 broom has an electrically operated diverter valve for 3rd valve hydraulic angling. Angles 30 degrees left and right.
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 906H Compact Wheel Loader
- 907H Compact Wheel Loader
- 908H Compact Wheel Loader
- 246C (XPS) Skid Steer Loader
- 256C (XPS) Skid Steer Loader
- 262C (XPS) Skid Steer Loader
- 272C (XPS) Skid Steer Loader
- 277C (XPS) Multi Terrain Loader
- 287C (XPS) Multi Terrain Loader
- 297C (XPS) Multi Terrain Loader
- 279C Compact Track Loader
- 289C Compact Track Loader
- 299C Compact Track Loader
- 247B Series 3 Multi Terrain Loader
- 216B Series 3 Skid Steer Loader
- 226B Series 3 Skid Steer Loader
- 236B Series 3 Skid Steer Loader
- 242B Series 3 Skid Steer Loader
- 257B Series 3 Multi Terrain Loader
- 259B Series 3 Compact Track Loader
