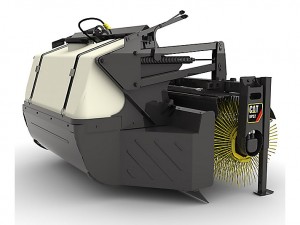

Pick-up Brooms for Cat Backhoe Loaders, Integrated Tool Carriers, and Wheel Loaders sweep and deposit materials into and integrated hopper for easy removal and dumping.
- Suspension system eliminates the need for support wheels.
- Broom bearings are maintenance free.
- Easily replaceable brush elements are convoluted polypropylene bristles.
- Electric power water sprinkler provides effective dust control.
- The BP22 Broom is powered by one hydraulic motor.
- The BP25 Broom is powered by two hydraulic motors.
- All parts are caterpillar service components.
Caterpillar BP15B Pickup Broom
- Sweeping Width – 1524mm
- Overall Width – 1912mm
- Brush Diameter – 660mm
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 246C (XPS) Skid Steer Loader
- 256C (XPS) Skid Steer Loader
- 262C (XPS) Skid Steer Loader
- 272C (XPS) Skid Steer Loader
- 277C (XPS) Multi Terrain Loader
- 287C (XPS) Multi Terrain Loader
- 297C (XPS) Multi Terrain Loader
- 279C Compact Track Loader
- 289C Compact Track Loader
- 299C Compact Track Loader
- 247B Series 3 Multi Terrain Loader
- 216B Series 3 Skid Steer Loader
- 226B Series 3 Skid Steer Loader
- 236B Series 3 Skid Steer Loader
- 242B Series 3 Skid Steer Loader
- 257B Series 3 Multi Terrain Loader
- 259B Series 3 Compact Track Loader
Caterpillar BP18B Pickup Broom
- Sweeping Width – 1829mm
- Overall Width – 2217mm
- Brush Diameter – 660m
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 246C (XPS) Skid Steer Loader
- 256C (XPS) Skid Steer Loader
- 262C (XPS) Skid Steer Loader
- 272C (XPS) Skid Steer Loader
- 277C (XPS) Multi Terrain Loader
- 287C (XPS) Multi Terrain Loader
- 297C (XPS) Multi Terrain Loader
- 279C Compact Track Loader
- 289C Compact Track Loader
- 299C Compact Track Loader
- 236B Series 3 Skid Steer Loader
- 257B Series 3 Multi Terrain Loader
- 259B Series 3 Compact Track Loader
Caterpillar BP22 Pickup Broom
- Sweeping Width – 2200mm
- Overall Width – 2400mm
- Brush Diameter – 700mm
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 906H Compact Wheel Loader
- 907H Compact Wheel Loader
- 908H Compact Wheel Loader
Caterpillar BP25 Pickup Broom
- Sweeping Width – 2500mm
- Overall Width – 2700mm
- Brush Diameter – 700mm
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 928Hz Wheel Loader
- 930H Wheel Loader
- 924H Wheel Loader
- 924Hz Wheel Loader
