These buckets are ideal for utility trenching, general excavating and backfilling in soft to moderate ground.

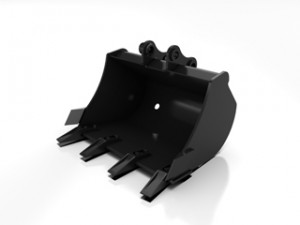

- Caterpillar Digging Buckets are designed to optimize the performance of the Cat Mini Hydraulic Excavator in a wide variety of applications and materials. There buckets are ideal for utility trenching, digging footings, backfilling and general excavating in construction, landscaping and utility applications.
- Caterpillar Digging Buckets are designed to deliver maximum digging force from Cat Mini Hydraulic Excavators. The geometry of each Caterpillar digging bucket has been optimized to take full advantage of the power, controllability and maneuverability of Caterpillar Mini Hydraulic Excavators for consistent, dependable, hig quality results when excavating.
- Hook-up is easily accomplished for quick, tool-free changes with an easily removable over-centre type retention pin. Bucket rotation pins are held firmly in place by the retention pins and can be removed without the use of additional hand tools. A mechanical quick coupler is also available for fast, secure work tool connections.
- Ground engaging tools are used in most general applications where good penetration and high breakout foreces are required, The digging bucket’s cutting edge is pre-drilled to accept bolt-on uniteeth.
Caterpillar230mm (9in) Digging Bucket
- Width – 230mm (9in)
- Struck Capacity – 0.02m3
- Heaped Capacity – 0.02m3
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 301.6C Hydraulic Excavator
- 301.8C Hydraulic Excavator
Caterpillar 260mm (10in) Digging Bucket
- Width – 260mm (10in)
- Struck Capacity – 0.03m3
- Heaped Capacity – 0.04m3
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 302.5C Hydraulic Excavator
Caterpillar 300mm (12in) Digging Bucket
- Width – 300mm (12in)
- Struck Capacity – 0.02m3
- Heaped Capacity – 0.02m3
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 301.6C Hydraulic Excavator
- 301.8C Hydraulic Excavator
Caterpillar 300mm (12in) Digging Bucket
- Width – 300mm (12in)
- Struck Capacity – 0.03m3
- Heaped Capacity – 0.04m3
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 302.5C Hydraulic Excavator
Caterpillar 400mm (16in) Digging Bucket
- Width – 400mm (16in)
- Struck Capacity – 0.03m3
- Heaped Capacity – 0.03m3
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 301.6C Hydraulic Excavator
- 301.8C Hydraulic Excavator
Caterpillar 400mm (16in) Digging Bucket
- Width 400mm (16in)
- Struck Capacity – 0.04m3
- Heaped Capacity – 0.05m3
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 302.5C Hydraulic Excavator
Caterpillar457mm (18in) Digging Bucket
- Width – 457mm (18in)
- Struck Capacity – 0.03m3
- Heaped Capacity – 0.04m3
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 301.6C Hydraulic Excavator
- 301.8C Hydraulic Excavator
Caterpillar 457mm (18in) Digging Bucket
- Width – 457mm (18in)
- Struck Capacity – 0.05m3
- Heaped Capacity – 0.065m3
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 302.5C Hydraulic Excavator
Caterpillar500mm (20in) Digging Bucket
- Width – 500mm (20in)
- Struck Capacity – 0.03m3
- Heaped Capacity – 0.05m3
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 301.6C Hydraulic Excavator
- 301.8C Hydraulic Excavator
Caterpillar 500mm (20in) Digging bucket
- Width – 500mm (20in)
- Struck Capacity – 0.06m3
- Heaped Capacity – 0.07m3
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 302.5C Hydraulic Excavator
Caterpillar 600mm (24in) Digging bucket
- Width – 600mm (24in)
- Struck Capacity – 0.04m3
- Heaped Capacity – 0.06m3
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 301.6C Hydraulic Excavator
- 301.8C Hydraulic Excavator
Caterpillar 600mm (24in) Digging Bucket
- Width – 600mm (24in)
- Struck Capacity – 0.07m3
- Heaped Capacity – 0.09m3
FOR USE WITH THE FOLLOWING COMPACT EQUIPMENT
- 302.5C Hydraulic Excavator
