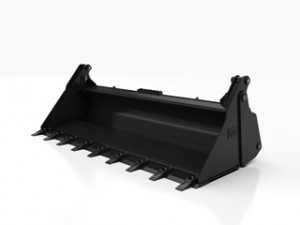

Caterpillar Multi- Purpose Buckets have the same loading, reliability and durability characteristics as other Compact Wheel Loader buckets, with the added versatility for digging, dozing, clamping, grading and levelling in a broad range of applications.
- Excellent clamping force allows the bucket to grasp large objects such as tree trunks, pipes, construction and demolition debris, increasing the functionality of the bucket.
- Serrated side edge of the clam provides a gripping surface to hold material.
- Clam opens a full 83 degrees to allow the bucket to be used as a dozing blade. The clam angle indicator shows the degree to which the bucket is open.
- Dozing edge is reversible and also interchangeable with the front bolt-on cutting edge. The base edge for the clam portion of the bucket is the same type that is used on the general purpose bucket.
- Hinge pin grease points are located at the pin ends outside the bucket for easy access and maintenance.
- The hinge pins are retained with a cotter pin that mounts through the hinge in the clam assembly. The fabricated hinge allows for tighter tolerances when manufactured, resulting in increased durability and longer life.
- Caterpillar’s XT hose is used throughout the Multi-Purpose Bucket design. O-ring face seals are used at all hose connection points. Hydraulic lines couple to the compact wheel loader’s hydraulic system using 5/8 inch Holmbury hydraulic couplers.
- Bolt-on teeth & Bolt-on cutting edge
Caterpillar Multi Purpose Bucket 1524mm
- width 1524mm
- rated bucket capacity 0.3m3
Caterpillar Multi Purpose Bucket 1676mm
- width 1676mm
- rated bucket capacity 0.34m3
Caterpillar Multi Purpose Bucket 1829mm
- width 1829mm
- rated bucket capacity 0.37m3
Caterpillar Multi Purpose Bucket 1981mm
- width 1981mm
- rated bucket capacity 0.4m3
Caterpillar Multi Purpose Bucket 2134mm
- width 2134mm
- rated bucket capacity 0.43m3
Caterpillar Multi Purpose Bucket 0.6m3
- capacity 0.6m3
- width 1770mm
- weight 374kg
Caterpillar Multi Purpose Bucket 0.8m3
- capacity 0.8m3
- width 1870mm
- weight 527kg
Caterpillar Multi Purpose Bucket 0.9m3
- capacity 0.9m3
- width 2050mm
- weight 547kg
Caterpillar Multi Purpose Bucket 1.1m3
- capacity 1.1m3
- width 2413mm
- weight 1111kg
Caterpillar Multi Purpose Bucket 1.3m3
- capacity 1.3m3
- width 2438mm
- weight 1089kg
Caterpillar Multi Purpose Bucket 1.6m3
- capacity 1.6m3
- width 2413mm
- weight 1361kg
